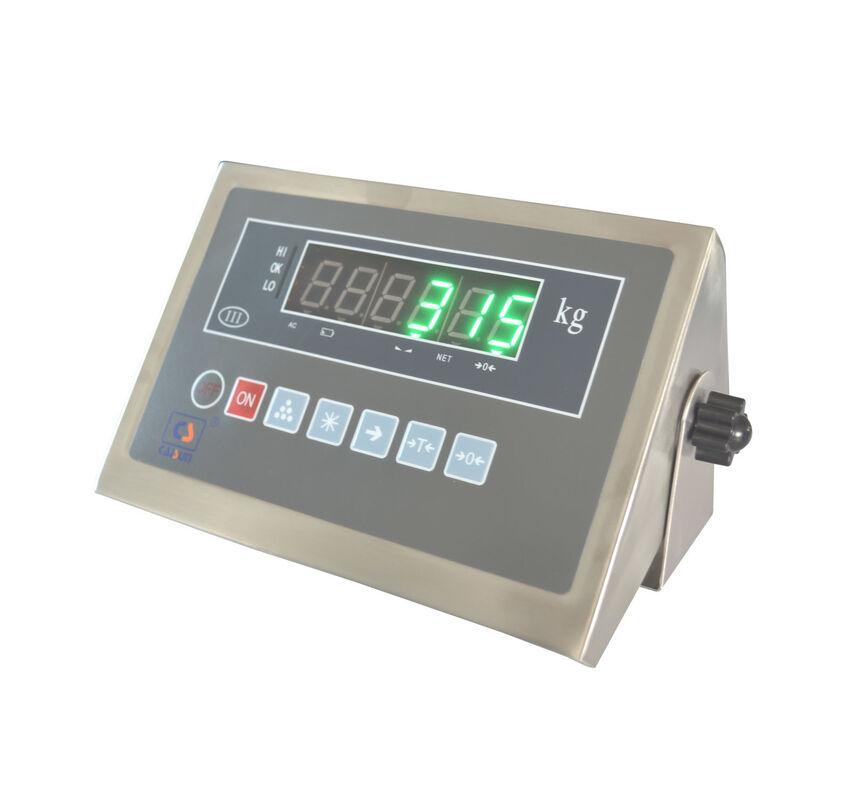

Green Display Water-Resistant Indicator BXK315A1-21GF - Heavy-Duty Design

Features

• 1. This robust weighing indicator provides reliable 10 V/m immunity to radiated electromagnetic fields.

  2. High visibility is guaranteed by the 6-digit 20.2mm green LED display on this indicator.

  3. The weighing indicator is capable of driving up to 4 x 350Ω or 8 x 700Ω load cells.

  4. Precision weighing is achieved with 1,000,000 internal ADC counts in this indicator.

  5. Data management is flexible with both manual and automatic weight accumulation on the weighing indicator.

  6. Long-term accuracy is preserved by the automatic zero tracking function of this indicator.

  7. For system integration, the weighing indicator features an RS-232C/RS-485 interface with data output.

  8. Hardcopy records are easily obtained via the built-in RS-232C serial printer interface on this indicator.

  9. Process monitoring is streamlined using the HI/OK/LO set points available on the weighing indicator.

  10. To prevent data loss, the indicator includes a low battery warning feature.

Dimensions(mm)

265 × 222 × 161 mm
