उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Brans

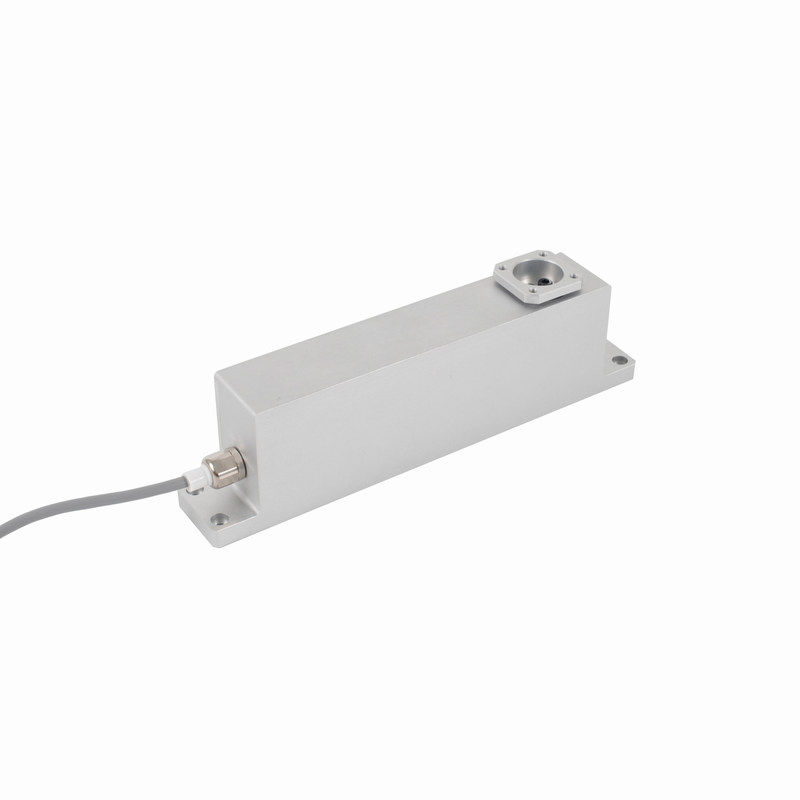

मॉडल संख्या: डब्ल्यूएलएसएम-132
दस्तावेज: WLSM-132 High Accuracy Load...NS.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 पीसी
प्रसव के समय: एक सप्ताह
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 800 पीसी / माह
क्षमता: |
30g/50g/100g/300g /500g/1kg/2kg |
संयुक्त त्रुटि: |
≤0.005%एफएस |
गैर linearity: |
≤0.005%एफएस |
repeatability: |
≤0.005%एफएस |
निर्धारित उत्पादन: |
1.0एमवी/वी |
जीरो बैलेंस: |
±0.05एमवी/वी |
इन्सुलेशन प्रतिरोध: |
≧ 5000m and/100vdc |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
सुरक्षित अधिभार: |
150% एफएस |
संरक्षण वर्ग: |
IP66 (अनुकूलन योग्य) |
ऑपरेशन टेम्प।: |
-30~80°C |
केबल का आकार: |
Ф3.2x4000 मिमी (अनुकूलन योग्य) |
क्षमता: |
30g/50g/100g/300g /500g/1kg/2kg |
संयुक्त त्रुटि: |
≤0.005%एफएस |
गैर linearity: |
≤0.005%एफएस |
repeatability: |
≤0.005%एफएस |
निर्धारित उत्पादन: |
1.0एमवी/वी |
जीरो बैलेंस: |
±0.05एमवी/वी |
इन्सुलेशन प्रतिरोध: |
≧ 5000m and/100vdc |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
सुरक्षित अधिभार: |
150% एफएस |
संरक्षण वर्ग: |
IP66 (अनुकूलन योग्य) |
ऑपरेशन टेम्प।: |
-30~80°C |
केबल का आकार: |
Ф3.2x4000 मिमी (अनुकूलन योग्य) |
Features & Applications
Specifications
| Capacity | 30g/50g/100g/300g /500g/1kg/2kg |
| Combined Error | ≤0.005%F.S. |
| Non-linearity | ≤0.005%F.S. |
| Repeatability | ≤0.005%F.S. |
| Rated Output | 1.0mV/V |
| Zero Balance | 0.05mV/V |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 2~12VDC |
| Material | Aluminum Alloy |
| Safe Overload | 150%F.S. |
| Protection Class | IP66(Customizable) |
| Operation Temp. | -30~80°C |
| Cable Size | Ф3.2x4000mm(Customizable) |
| Nominal Displacement | <0.05mm |
Dimensions(mm)
Load direction
Wiring code
Shipping & Packaging
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
