उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: BRANS
मॉडल संख्या: डब्ल्यूएल-120
दस्तावेज: WL-120 Single Point Load Ce...NS.pdf
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा: 1 टुकड़ा
पैकेजिंग विवरण: Standard exporter carton packing including of instructions. निर्देशों सहित मानक निर्यातक क
प्रसव के समय: 5-7 कार्य दिवस
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन, पेपैल
क्षमता: |
50 ~ 1000 किग्रा |
निर्धारित उत्पादन: |
2.0 ± 10% एमवी / वी |
संयुक्त सटीकता: |
±0.017% एफ.एस. |
अनुशंसित उत्तेजना: |
10 ~ 15VDC |
पुल प्रतिरोध: |
420±20Ω |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
केबल का आकार: |
Ф5x2000 मिमी ((अनुकूलन योग्य) |
सुरक्षित अधिभार: |
150% एफ.एस. |
ऑपरेशन टेम्प।: |
-10~40° सेल्सियस |
संरक्षण वर्ग: |
IP66 (अनुकूलन योग्य) |
गैर linearity: |
0.017%एफएस |
repeatability: |
0.017%एफएस |
जीरो बैलेंस: |
±0.02%mV/V |
इन्सुलेशन प्रतिरोध: |
> 5000m and/100vdc |
नाममात्र का विस्थापन: |
0.3~0.5मिमी |
क्षमता: |
50 ~ 1000 किग्रा |
निर्धारित उत्पादन: |
2.0 ± 10% एमवी / वी |
संयुक्त सटीकता: |
±0.017% एफ.एस. |
अनुशंसित उत्तेजना: |
10 ~ 15VDC |
पुल प्रतिरोध: |
420±20Ω |
सामग्री: |
एल्यूमीनियम मिश्र धातु |
केबल का आकार: |
Ф5x2000 मिमी ((अनुकूलन योग्य) |
सुरक्षित अधिभार: |
150% एफ.एस. |
ऑपरेशन टेम्प।: |
-10~40° सेल्सियस |
संरक्षण वर्ग: |
IP66 (अनुकूलन योग्य) |
गैर linearity: |
0.017%एफएस |
repeatability: |
0.017%एफएस |
जीरो बैलेंस: |
±0.02%mV/V |
इन्सुलेशन प्रतिरोध: |
> 5000m and/100vdc |
नाममात्र का विस्थापन: |
0.3~0.5मिमी |

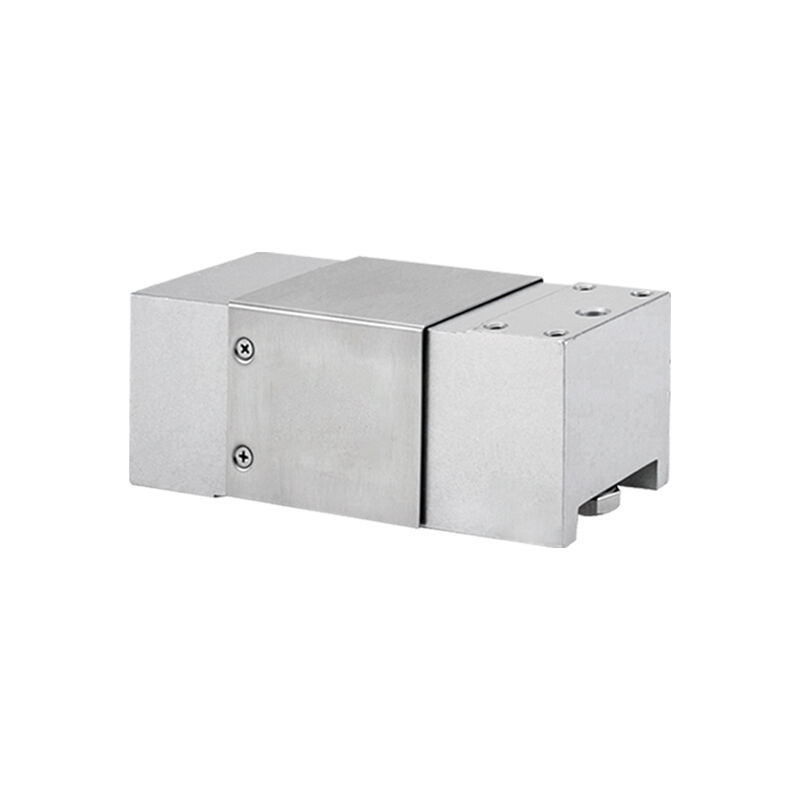

Industrial Heavy-Duty Single Point Load Cell for Harsh Checkweighing – WL-120
Product Description:
The WL-120 is a heavy-duty single point load cell engineered for demanding industrial checkweighing applications. Made of high-strength aluminum alloy, this single point load cell offers a wide capacity range from 50 kg to 1000 kg. Despite its robust load rating, the single point load cell features a compact structure that supports dynamic weighing. The single point load cell accommodates platform sizes up to 800×800 mm, providing excellent stability for oversized loads. Whether used in building material production or liquid energy filling, this single point load cell delivers consistent, repeatable measurements. Gas filling systems and canning lines also benefit from the fast response of this single point load cell. Each single point load cell is designed to integrate seamlessly into automated process control environments. Brans offers customization for every single point load cell, including application-specific adaptations and modified specifications. With its combination of high capacity and compact form, this single point load cell solves real-world weighing challenges. From quality control to production monitoring, this single point load cell performs reliably day after day.
Features and Applications:
Heavy-duty single point load cell with 50kg to 1000kg capacity
Aluminum alloy construction for durability and light weight
Compact structure enables dynamic weighing capability
Maximum platform size: 800×800 mm per single point load cell
Mainly used for checkweighing in building materials, liquid energy, gas filling, and canning
Each single point load cell can be customized for specific industrial requirements
Engineering support available for specialized single point load cell configurations
Specifications:
| Capacity | 50~1000kg |
|---|---|
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±0.02%mV/V |
| Insulation Resistance | >5000MΩ/100VDC |
| Recommended Excitation | 10~15VDC |
| Material | Aluminum Alloy |
| Operation temp | -10~40°C |
| Safe overload | 150%F.S. |
| IP class | IP66 (Customizable) |
| Cable size | Ф5x2000mm(Customizable) |
Dimension(MM):
Load Direction:
Wiring:
Load Cell Packaging & Shipping Standards
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
